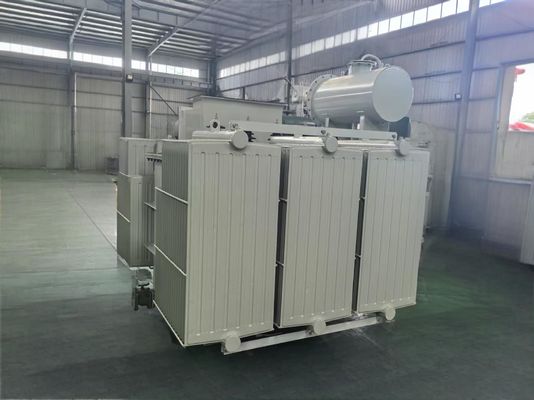

Oil Immersed Distribution Transformer YNd11 13800/480 V for Stable and Industrial Power Distribution

Product Description:

An Oil Immersed Transformer is a type of electrical transformer where the core and windings are immersed in oil. This design helps in dissipating heat and insulating the transformer components effectively. One of the efficient products in this category is the Oil Immersed Power Transformer with the following specifications:

Oil Grade: 25# Oil

Ambient Temperature: 28℃

Cooling Method: ONAN (Oil Natural Air Natural)

Rated Voltage: 13800/480 V

Type: S-M-2500/13.8-0.48

With 25# Oil as the grade, this Oil Immersed Transformer ensures optimal performance and longevity. The oil's quality plays a crucial role in maintaining insulation and cooling efficiency within the transformer.

Operating at an ambient temperature of 28℃, this transformer is designed to perform reliably under normal environmental conditions. The specified temperature range ensures that the transformer operates within safe limits, preventing overheating and ensuring consistent performance.

Utilizing the ONAN cooling method, this Oil Immersed Transformer relies on natural convection to dissipate heat generated during operation. The oil circulates naturally, transferring heat away from the core and windings to maintain the transformer's temperature within the desired range.

The rated voltage of 13800/480 V indicates the transformer's capacity to handle high voltage inputs and deliver lower voltage outputs as required. This versatility makes it suitable for various applications where different voltage levels are necessary for power distribution and usage.

The specific type of this transformer, S-M-2500/13.8-0.48, provides detailed information about its power rating, primary and secondary voltage levels, and impedance characteristics. Understanding the transformer type is crucial for ensuring compatibility with the electrical system it will be integrated into.

In summary, this Oil Immersed Power Transformer offers a reliable and efficient solution for power distribution and voltage transformation needs. With its high-quality oil grade, suitable ambient temperature rating, effective cooling method, and versatile rated voltage specifications, this transformer is designed to deliver consistent performance and durability in various applications.

Features:

• Product Name: Oil Immersed Power Transformer
• Type: S-M-2500/13.8-0.48
• Tapping range: ±2x2.5%
• Rated frequency: 60Hz
• Connection group: YNd11
• Oil grade: 25# Oil

Technical Parameters:

Applications:

Oil Immersed Distribution Transformer is a versatile product that can be used in various occasions and scenarios due to its reliable performance and efficiency. The Oil-immersed transformer with the model number S-M-2500/13.8-0.48 is a high-quality product originating from CHINA and certified by GB standards.

One of the key application occasions for this Oil Immersed Distribution Transformer is in industrial settings where a reliable power supply is essential for continuous operations. The transformer's cooling method of ONAN ensures optimal performance even in high-demand environments. Its connection group of YNd11 provides flexibility in installation and operation, making it suitable for a wide range of industrial applications.

Another important scenario where the Oil-immersed transformer excels is in power distribution networks. With its 3-phase design and tapping range of ±2x2.5%, this transformer is ideal for ensuring stable power supply to residential, commercial, and industrial areas. The use of 25# Oil grade enhances the transformer's durability and longevity, making it a cost-effective solution for long-term power distribution needs.

Furthermore, the Oil Immersed Distribution Transformer is well-suited for rural electrification projects where reliable power supply is crucial for improving the quality of life for communities. Its packaging details, which include a wooden pallet, ensure safe transportation and handling, making it an ideal choice for remote locations.

In conclusion, the Oil Immersed Distribution Transformer with model number S-M-2500/13.8-0.48 is a versatile and reliable product that can be applied in a wide range of occasions and scenarios. Its high-quality construction, certification, and unique attributes make it a top choice for industrial, power distribution, and rural electrification projects.

Customization:

Product Customization Services for the Oil Immersed Distribution Transformer:

Brand Name: Oil-immersed transformer

Model Number: S-M-2500/13.8-0.48

Place of Origin: CHINA

Certification: GB

Packaging Details: WOODEN PALLET

Type: S-M-2500/13.8-0.48

Rated capacity: 2500KVA

Connection group: YNd11

Insulation class: A

Ambient temperature: 28℃

Support and Services:

Our Product Technical Support and Services for the Oil Immersed Power Transformer include:

- Installation guidance and on-site support

- Maintenance and troubleshooting assistance

- Technical documentation and manuals

- Training programs for operational staff

- Remote monitoring and diagnostics services

Packing and Shipping:

Product Packaging:

The Oil Immersed Power Transformer will be carefully packaged in a sturdy wooden crate to ensure safe transportation. The transformer will be secured with appropriate cushioning materials to prevent any damage during shipping.

Shipping:

We will arrange for the Oil Immersed Power Transformer to be shipped via a reliable freight service. The shipment will be tracked to ensure timely delivery to your specified location. Please provide accurate shipping details to avoid any delays in receiving your order.

FAQ:

Q: What is the brand name of this oil-immersed power transformer?

A: The brand name is Oil-immersed transformer.

Q: What is the model number of this power transformer?

A: The model number is S-M-2500/13.8-0.48.

Q: Where is this oil-immersed power transformer manufactured?

A: It is manufactured in CHINA.

Q: What certification does this power transformer have?

A: It is certified with GB.

Q: How is the oil-immersed power transformer packaged for shipping?

A: It is packaged on a WOODEN PALLET.
