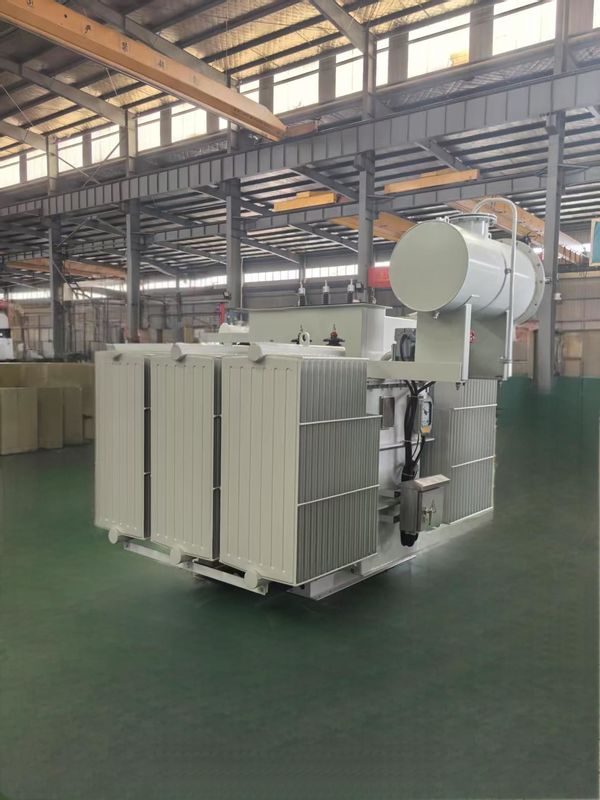

ONAN Cooling Method Oil Immersed Transformer YNd11 Connection Group with Customizable Options

Product Description:

An Oil Immersed Transformer is a crucial component in electrical power distribution systems, designed to efficiently transfer electrical energy from one circuit to another through the principle of electromagnetic induction. This particular Oil Immersed Power Transformer model boasts a range of advanced features and specifications that make it a reliable and efficient choice for various power distribution applications.

One of the key attributes of this Oil Immersed Transformer is its tapping range, which offers a flexibility of ±2x2.5%. This wide tapping range allows for precise adjustments to voltage levels, ensuring optimal performance and compatibility with different power systems.

When it comes to insulation and cooling, this Oil Immersed Transformer uses 25# Oil as the oil grade. The 25# Oil is known for its excellent dielectric properties and thermal conductivity, making it ideal for providing insulation and dissipating heat effectively within the transformer. Additionally, the cooling method employed in this transformer is ONAN (Oil Natural Air Natural), which relies on natural convection and radiation to maintain the transformer's operating temperature within safe limits.

With a rated capacity of 2500KVA, this Oil Immersed Transformer is capable of handling significant power loads while maintaining high levels of efficiency and reliability. Whether used in industrial settings, commercial facilities, or utility substations, this transformer delivers consistent and stable performance to ensure uninterrupted power supply.

Moreover, the design of this Oil Immersed Transformer takes into account the ambient temperature conditions, with a specified operating temperature of 28℃. This ensures that the transformer can operate efficiently within a wide range of environmental conditions, providing reliable power distribution even in challenging climates.

In conclusion, this Oil Immersed Power Transformer stands out as a dependable and high-performance solution for various power distribution requirements. With its versatile tapping range, high-quality insulation, efficient cooling system, substantial rated capacity, and adaptability to ambient temperatures, this transformer offers a reliable and durable option for ensuring smooth and reliable electricity distribution in diverse applications.

Features:

• Product Name: Oil Immersed Power Transformer
• Insulation class: A
• Tapping range: ±2x2.5%
• Type: S-M-2500/13.8-0.48
• Rated capacity: 2500KVA
• Rated freaquency: 60Hz

Technical Parameters:

Applications:

Oil Immersed Power Transformers are versatile and reliable electrical devices that are widely used in various applications and scenarios. The Oil Immersed Transformer, with the model number S-M-2500/13.8-0.48, is a high-quality product manufactured in CHINA and certified according to GB standards.

One of the key product attributes of the Oil Immersed Transformer is its rated voltage of 13800/480 V, making it suitable for a wide range of electrical systems. The type of this transformer is S-M-2500/13.8-0.48, indicating its specific design and capabilities.

Due to its robust construction and efficient cooling method (ONAN), the Oil Immersed Distribution Transformer can operate effectively in ambient temperatures of up to 28℃. This makes it ideal for use in various environments and conditions where temperature control is crucial.

The Oil Immersed Transformer is designed with a tapping range of ±2x2.5%, allowing for flexibility in adjusting the voltage output as needed. This feature is particularly useful in applications where precise voltage control is required for optimal performance.

When it comes to packaging, the Oil Immersed Transformer is carefully protected during transportation and storage, with packaging details specifying the use of a WOODEN PALLET. This ensures that the transformer arrives in perfect condition at its destination.

Overall, the Oil Immersed Power Transformer is a reliable and efficient electrical device that is suitable for a wide range of applications and scenarios. Whether used in industrial settings, power distribution systems, or renewable energy projects, this transformer delivers consistent performance and durability.

Customization:

Product Customization Services for the Oil Immersed Power Transformer:

Brand Name: Oil Immersed Transformer

Model Number: S-M-2500/13.8-0.48

Place of Origin: CHINA

Certification: GB

Packaging Details: WOODEN PALLET

Ambient temperature: 28℃

Oil grade: 25# Oil

Insulation class: A

No. of phase: 3

Rated frequency: 60Hz

Support and Services:

The Product Technical Support and Services for the Oil Immersed Power Transformer include:

- Installation guidance and support

- Operation and maintenance training

- Troubleshooting assistance

- Spare parts availability

- Warranty services

- Technical documentation and manuals

- Regular inspections and testing

Packing and Shipping:

Product Packaging:

The Oil Immersed Power Transformer is carefully packaged to ensure safe transportation and delivery. It is securely wrapped and protected with appropriate cushioning materials to prevent any damage during transit.

Shipping:

We offer reliable shipping services for the Oil Immersed Power Transformer product. Our team ensures that the product is properly loaded and shipped according to industry standards, with tracking information provided to customers for easy monitoring of the delivery process.
